Technical Details Fuel Type Natural Gas / LP Convertible Installation Type Freestanding Color Stainless Steel Electrical Requirements 240V, 4-Prong 14-50R Power Outlet Circuit Breaker (A) 20A Frequency (Hz) 60 Hz Controls Type Knob Burner Performance Total Burners 6 (1) Front Left (Single) 18,000 BTU (2) Front Middle (Dual Burner) 15,000 BTU (650 BTU for Simmer) (3) Front Right (Single) 18,000 BTU (4) Rear Left (Single) 12,000 BTU (5) Rear Middle (Single) 12,000 BTU (6) Rear Right (Dual Burner with simmer function) 15,000 BTU (650 BTU for Simmer) (7) Stainless Steel Griddle 15,000 BTU Oven Performance Oven Capacity 6.7 cu. ft. (4.2 cu. ft. for 30-inch oven) (2.5 cu. ft. for 18-inch oven) Bake Power (30-inch oven) 3,000 W Bake Power (18-inch oven) 2,500 W (Bottom) Broil Power (30-inch oven) 850 W + 3,000 W

CUTOUT Cutout Height 35 15/16” (+1”) Cutout Width 48 1/8” Cutout Depth 24 3/16” ACCESSORIES NOT INCLUDED Liquid Propane Gas Conversion Kit LPKHRD4803U 30-inch Telescopic Rack (for 30-inch oven) TR30SS Bamboo Cutting Board CB0001 48-inch Island Trim ITHRD4803U Wok Ring WK01 Cast Iron Reversible Griddle RG1022

Thor Kitchen 48 Inch Dual Fuel Range in Stainless Steel - Professional - HRD4803U

HRD4803U

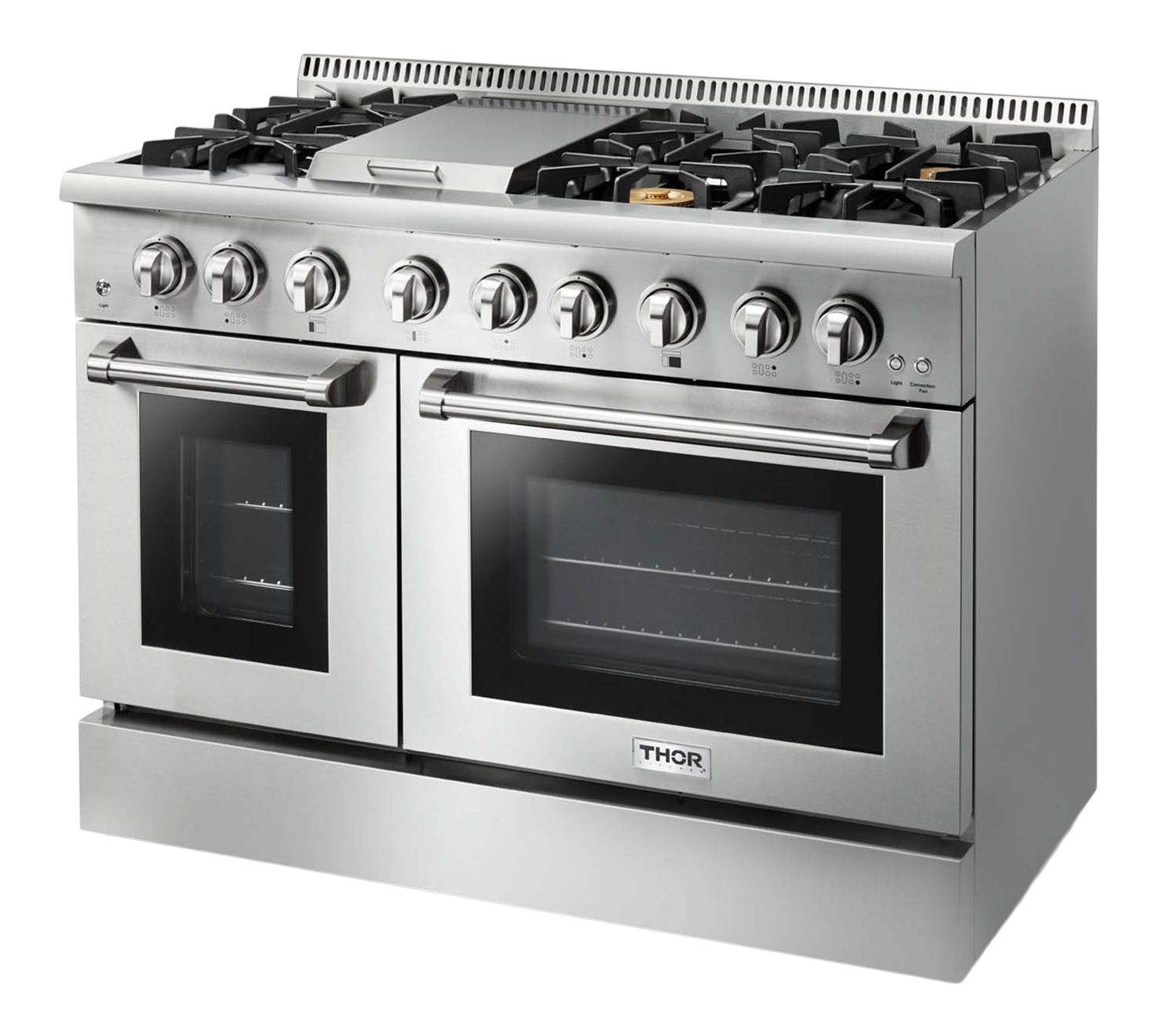

THOR Kitchen 48 Inch Dual Fuel Range in Stainless Steel - Professional - HRD4803U

Name: THOR Kitchen 48 Inch Dual Fuel Range in Stainless Steel - Professional - HRD4803U
Brand: thorkitchen.com
SKU: HRD4803U
Price: 7054.00 USD
Availability: InStock

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The THOR Kitchen 48 Inch Dual Fuel Range is a stainless-steel machine that is designed with professional features and functionality. This powerful range has 6 burners including two 18,000 BTU single burners, two 15,000 BTU dual burners and two 12,000 BTU single burners giving you the flexible cooktop you’ve been dreaming about. Oh, and did we mention the high-intensity 15,000 BTU stainless-steel griddle? #cooklikeagod

$7,054.00

$8,299.00

Find Nearby

THOR Kitchen 48 Inch Dual Fuel Range in Stainless Steel - Professional - HRD4803U

$7,054.00

$8,299.00

Technical Details
Fuel Type	Natural Gas / LP Convertible
Installation Type	Freestanding
Color	Stainless Steel
Electrical Requirements	240V, 4-Prong 14-50R Power Outlet
Circuit Breaker (A)	20A
Frequency (Hz)	60 Hz
Controls Type	Knob

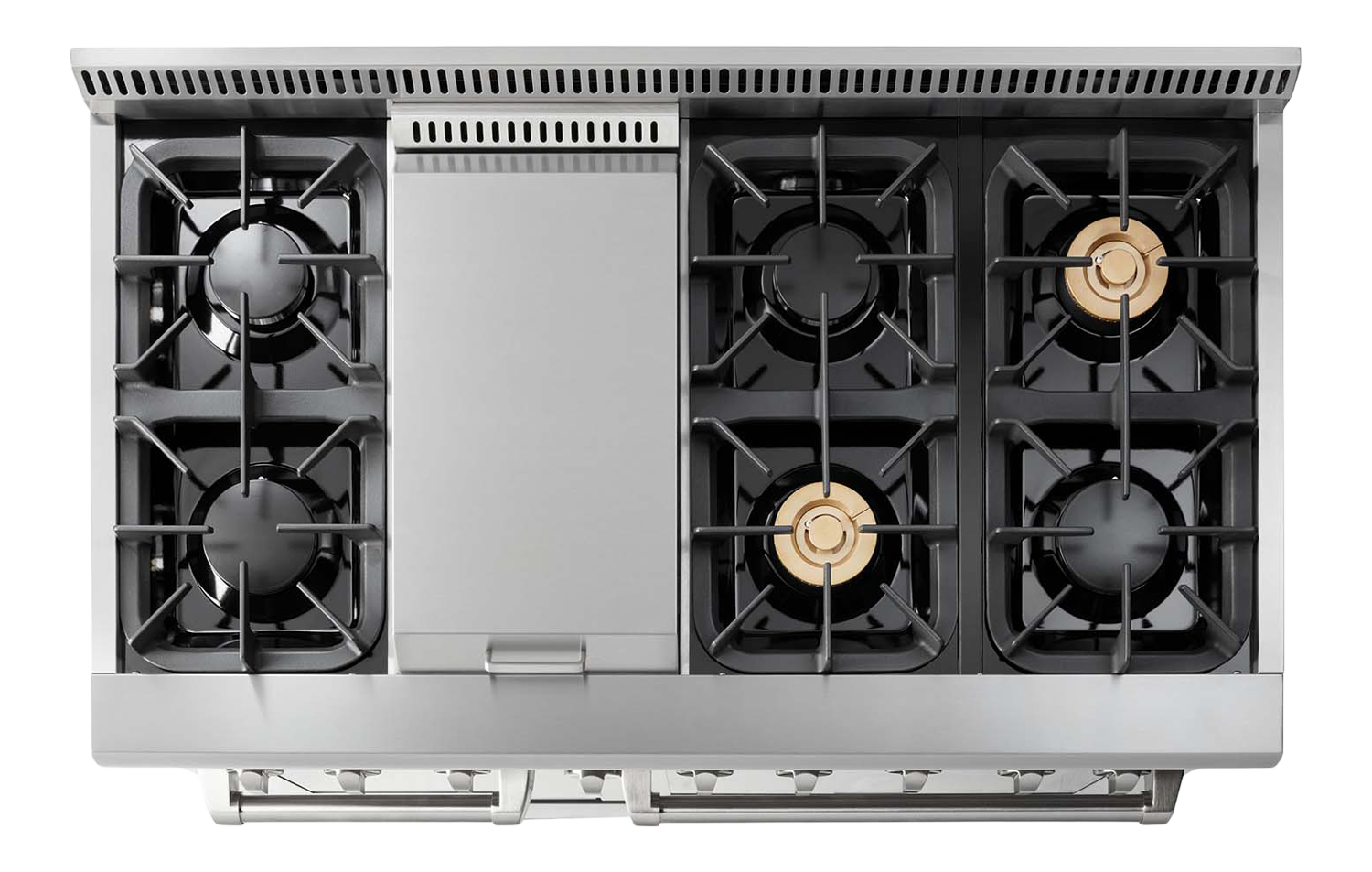

Burner Performance
Total Burners	6
(1) Front Left (Single)	18,000 BTU
(2) Front Middle (Dual Burner)	15,000 BTU (650 BTU for Simmer)
(3) Front Right (Single)	18,000 BTU
(4) Rear Left (Single)	12,000 BTU
(5) Rear Middle (Single)	12,000 BTU
(6) Rear Right (Dual Burner with simmer function)	15,000 BTU (650 BTU for Simmer)
(7) Stainless Steel Griddle	15,000 BTU

Oven Performance
Oven Capacity	6.7 cu. ft. (4.2 cu. ft. for 30-inch oven) (2.5 cu. ft. for 18-inch oven)
Bake Power (30-inch oven)	3,000 W
Bake Power (18-inch oven)	2,500 W (Bottom)
Broil Power (30-inch oven)	850 W + 3,000 W

Dimensions
Product Width	47 7/8"
Product height (from bottom to top of back splash)	38 1/2”-39 1/2”
Product height (from bottom to top of side panel)	35 15/16” – 36 15/16”
Product depth (from back panel to bullnose)	27 7/8”
Product depth (from back panel to control board)	26 1/2”
Product depth (from back panel to side panel front)	24 3/16”
Depth of control panel (minimum)	2 1/4”
Depth of control panel (bullnose)	3 11/16”
Cast iron cooking grate (W x L)	10 3/4” x 21 1/2”
Adjustable Leg Sizes	1" Max.

Weight
Net weight	395 lbs.
Gross weight	527 lbs.

CUTOUT
Cutout Height	35 15/16” (+1”)
Cutout Width	48 1/8”
Cutout Depth	24 3/16”

ACCESSORIES NOT INCLUDED
Liquid Propane Gas Conversion Kit	LPKHRD4803U
30-inch Telescopic Rack (for 30-inch oven)	TR30SS
Bamboo Cutting Board	CB0001
48-inch Island Trim	ITHRD4803U
Wok Ring	WK01
Cast Iron Reversible Griddle	RG1022

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual + Installation
📄 Installation Manual

Technical

Technical Details
Fuel Type	Natural Gas / LP Convertible
Installation Type	Freestanding
Color	Stainless Steel
Electrical Requirements	240V, 4-Prong 14-50R Power Outlet
Circuit Breaker (A)	20A
Frequency (Hz)	60 Hz
Controls Type	Knob

Burner Performance
Total Burners	6
(1) Front Left (Single)	18,000 BTU
(2) Front Middle (Dual Burner)	15,000 BTU (650 BTU for Simmer)
(3) Front Right (Single)	18,000 BTU
(4) Rear Left (Single)	12,000 BTU
(5) Rear Middle (Single)	12,000 BTU
(6) Rear Right (Dual Burner with simmer function)	15,000 BTU (650 BTU for Simmer)
(7) Stainless Steel Griddle	15,000 BTU

Oven Performance
Oven Capacity	6.7 cu. ft. (4.2 cu. ft. for 30-inch oven) (2.5 cu. ft. for 18-inch oven)
Bake Power (30-inch oven)	3,000 W
Bake Power (18-inch oven)	2,500 W (Bottom)
Broil Power (30-inch oven)	850 W + 3,000 W

Dimensions and Weight

Dimensions
Product Width	47 7/8"
Product height (from bottom to top of back splash)	38 1/2”-39 1/2”
Product height (from bottom to top of side panel)	35 15/16” – 36 15/16”
Product depth (from back panel to bullnose)	27 7/8”
Product depth (from back panel to control board)	26 1/2”
Product depth (from back panel to side panel front)	24 3/16”
Depth of control panel (minimum)	2 1/4”
Depth of control panel (bullnose)	3 11/16”
Cast iron cooking grate (W x L)	10 3/4” x 21 1/2”
Adjustable Leg Sizes	1" Max.

Weight
Net weight	395 lbs.
Gross weight	527 lbs.

Cutout

CUTOUT
Cutout Height	35 15/16” (+1”)
Cutout Width	48 1/8”
Cutout Depth	24 3/16”

ACCESSORIES NOT INCLUDED
Liquid Propane Gas Conversion Kit	LPKHRD4803U
30-inch Telescopic Rack (for 30-inch oven)	TR30SS
Bamboo Cutting Board	CB0001
48-inch Island Trim	ITHRD4803U
Wok Ring	WK01
Cast Iron Reversible Griddle	RG1022

Spec and Manual

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual + Installation
📄 Installation Manual

PRODUCT FEATURES

From a high-powered 18,000 BTU burner to a burner with a steady 650 BTU simmer function, this range gives you the power you need for large family meals and the consistent low heat desired for cooking delicate sauces or melting chocolate

Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels

Heating element distributes heat evenly for excellent boiling and baking

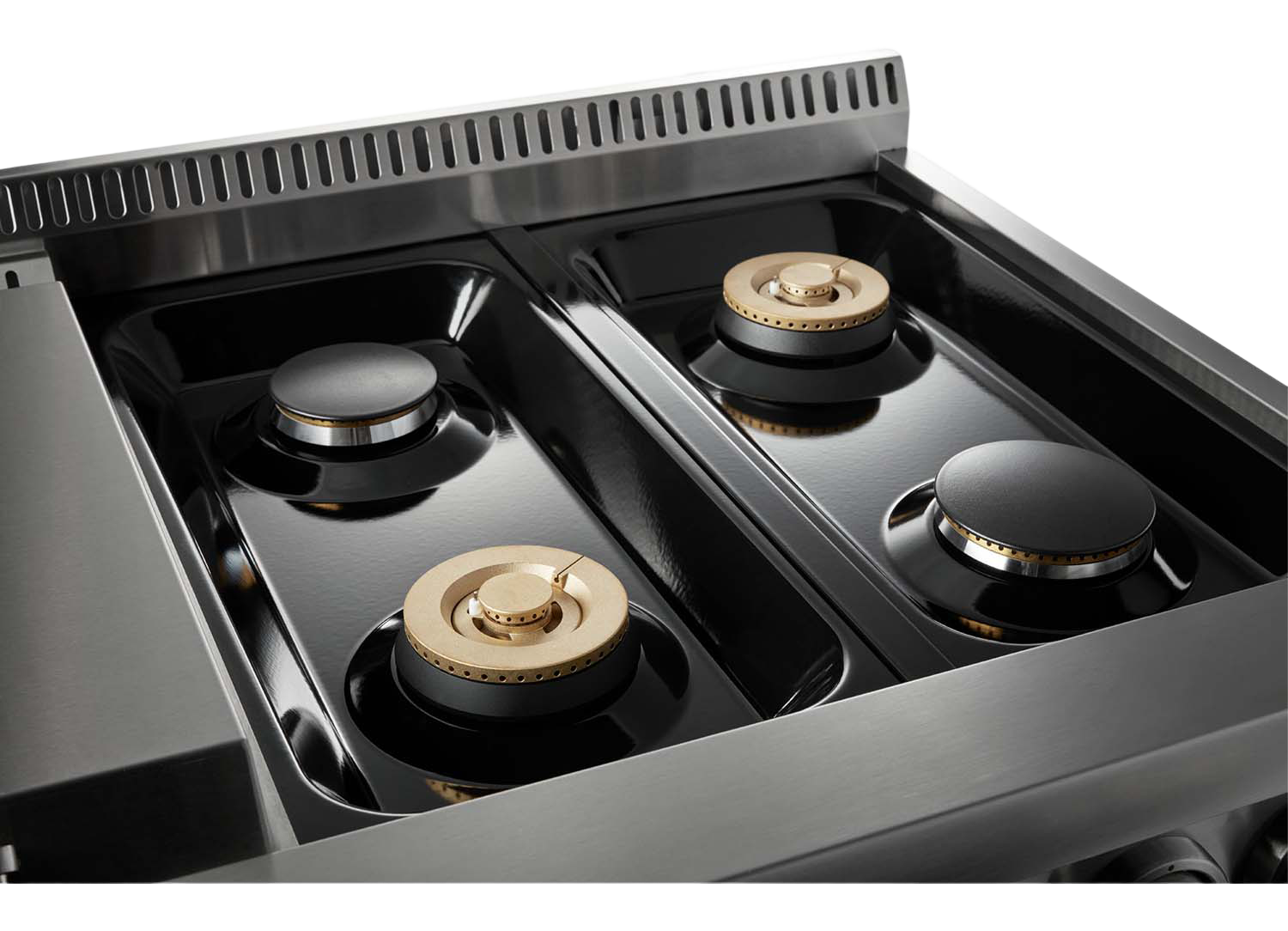

HIGH-POWERED BTU BURNERS

From a high-powered 18,000 BTU burner to a burner with a steady 650 BTU simmer function, this range gives you the power you need for large family meals and the consistent low heat desired for cooking delicate sauces or melting chocolate
LUXGLIDE™ TELESCOPIC RACKS

Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels
ENERGY EFFICIENT HEATING

Heating element distributes heat evenly for excellent boiling and baking
LED CONTROL PANEL LIGHTS

When in operation, the LED control panel lights illuminate a striking blue for an added pop of color

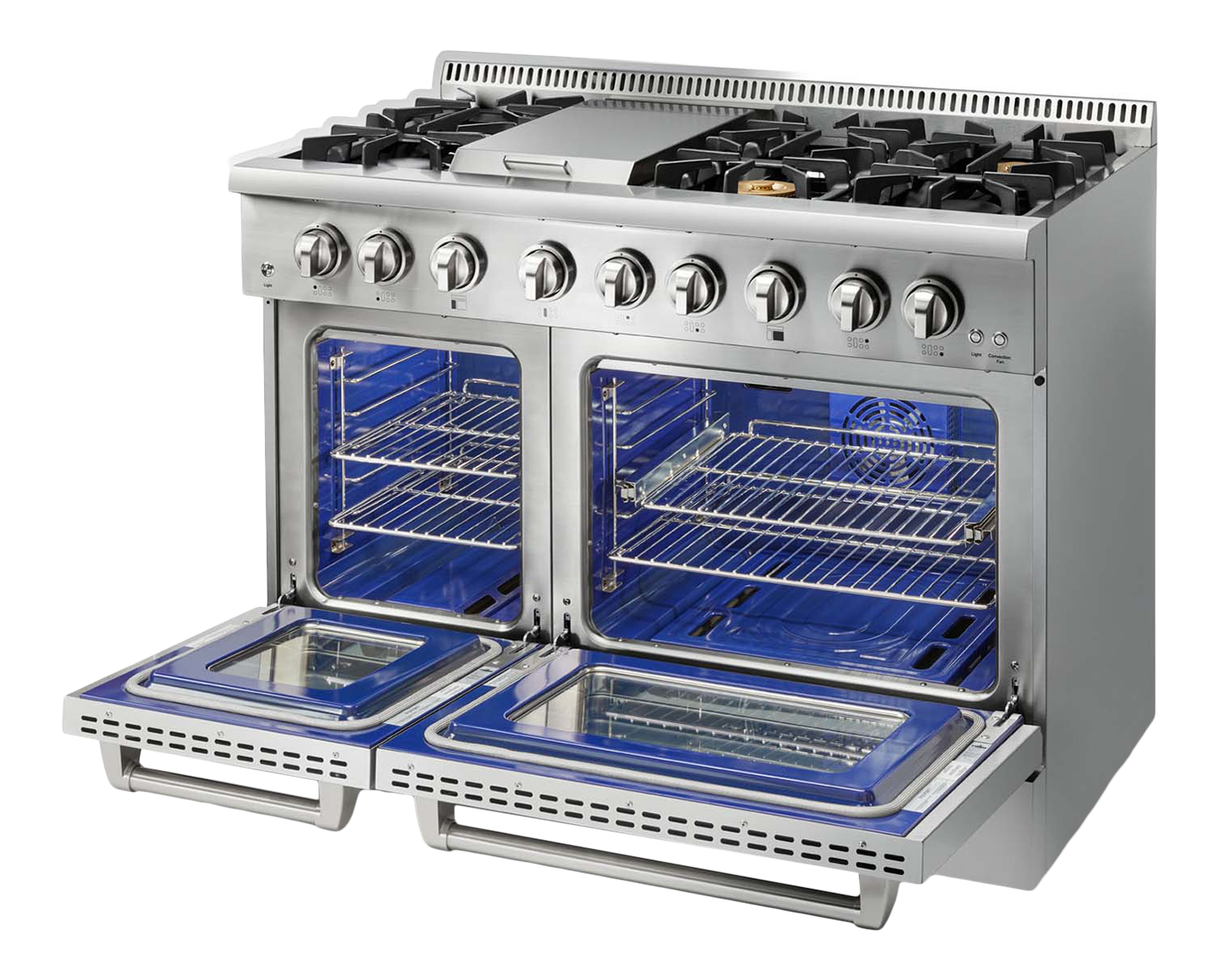

DUAL OVENS

Dual ovens at 4.2 cu. ft. and 2.5 cu. ft. capacity allow you to cook multiple dishes at a time
CONTINUOUS CAST-IRON COOKING GRATES

Heavy-duty continuous cast-iron cooking grates that can handle any size cookware
15,000 BTU GRIDDLE

The 15,000 BTU griddle offers additional cooking space and flexibility
BRILLIANT BLUE PORCELAIN INTERIOR

The brilliant blue porcelain interior adds a bold, stylish touch to your professional range
