Technical Details Watts 1200W Amperage 15A (Dedicated) Volts 120V Frequency 60Hz Total Annual Energy Consumption 240 kWh per year Water Consumption 3.2 gal Noise Level 47 dBA Water Feed Pressure 20–120 psi Inlet Water Temperature Recommended 120°F (49°C) Outlet Hose Length (in.) 59" General Properties Load Capacity (Place Settings) 15 Number of Wash Cycles 7 Spray Arms 3 (Lower, Upper, and Top) Tub Material Stainless Steel Number of Racks 3 Adjustable Rack Yes Control Type Touch Screen Water Softener No Child Lock Yes Status Indicator Yes (Red) Tub Light No Wine Glass Bracket Yes Third Layer Cutlery Rack Yes

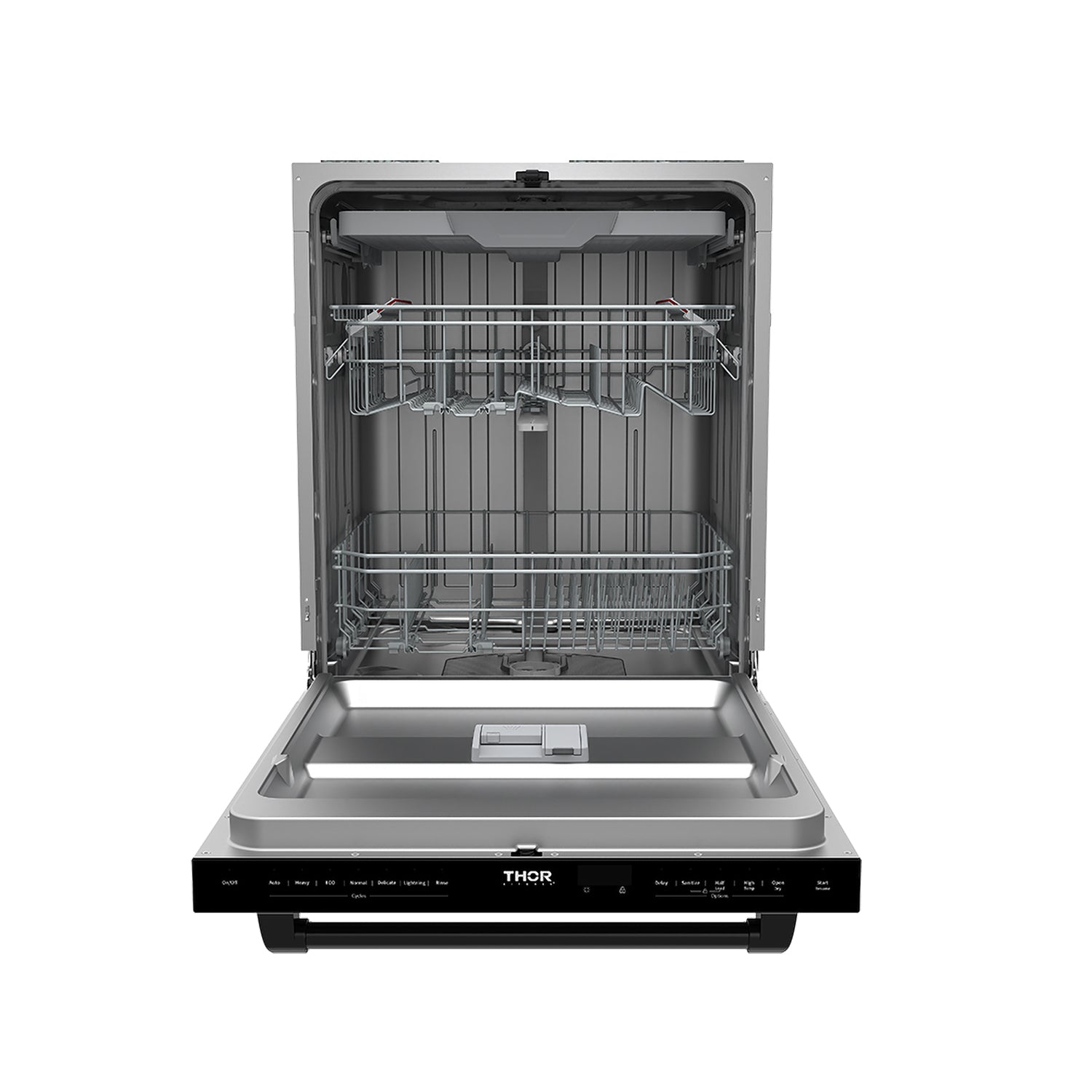

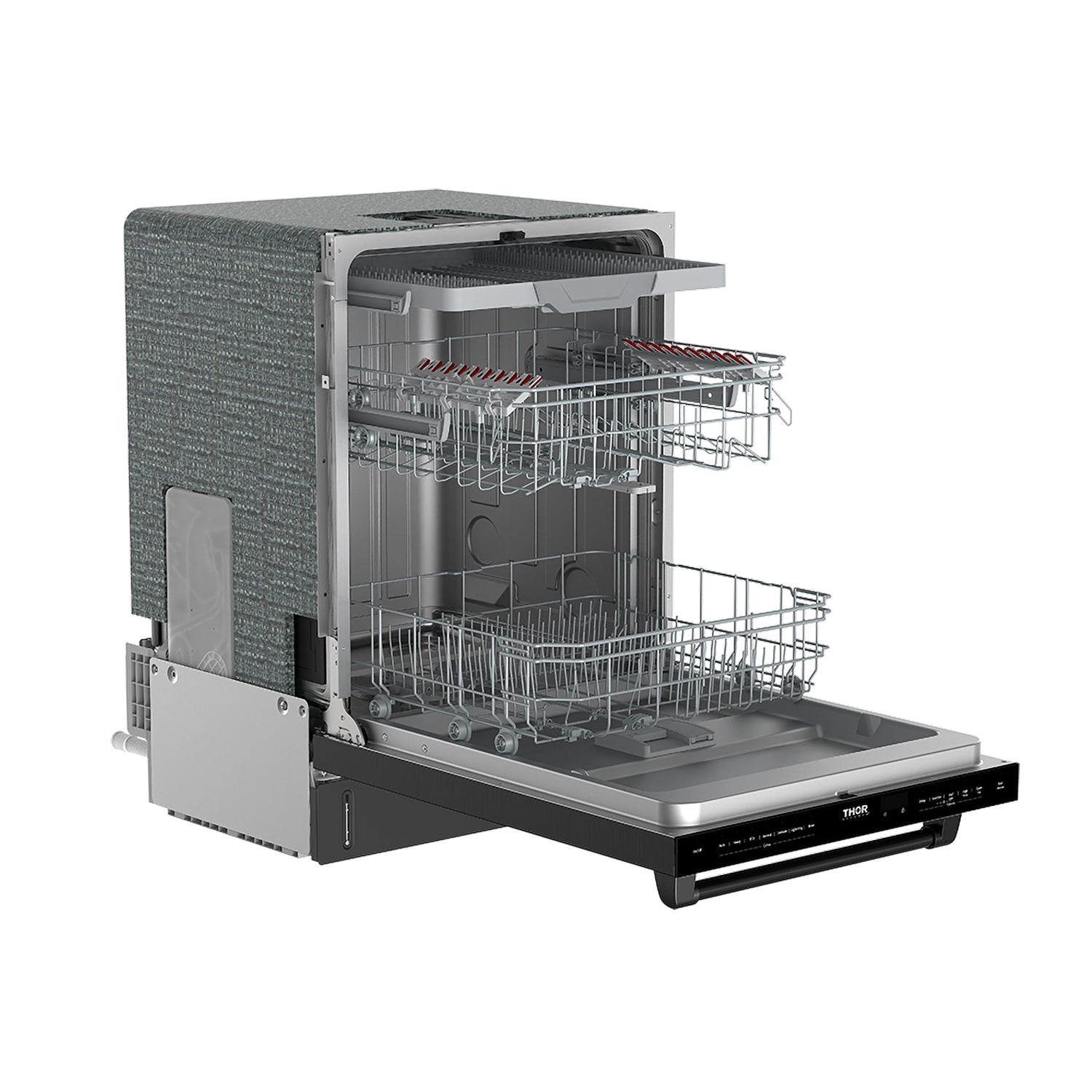

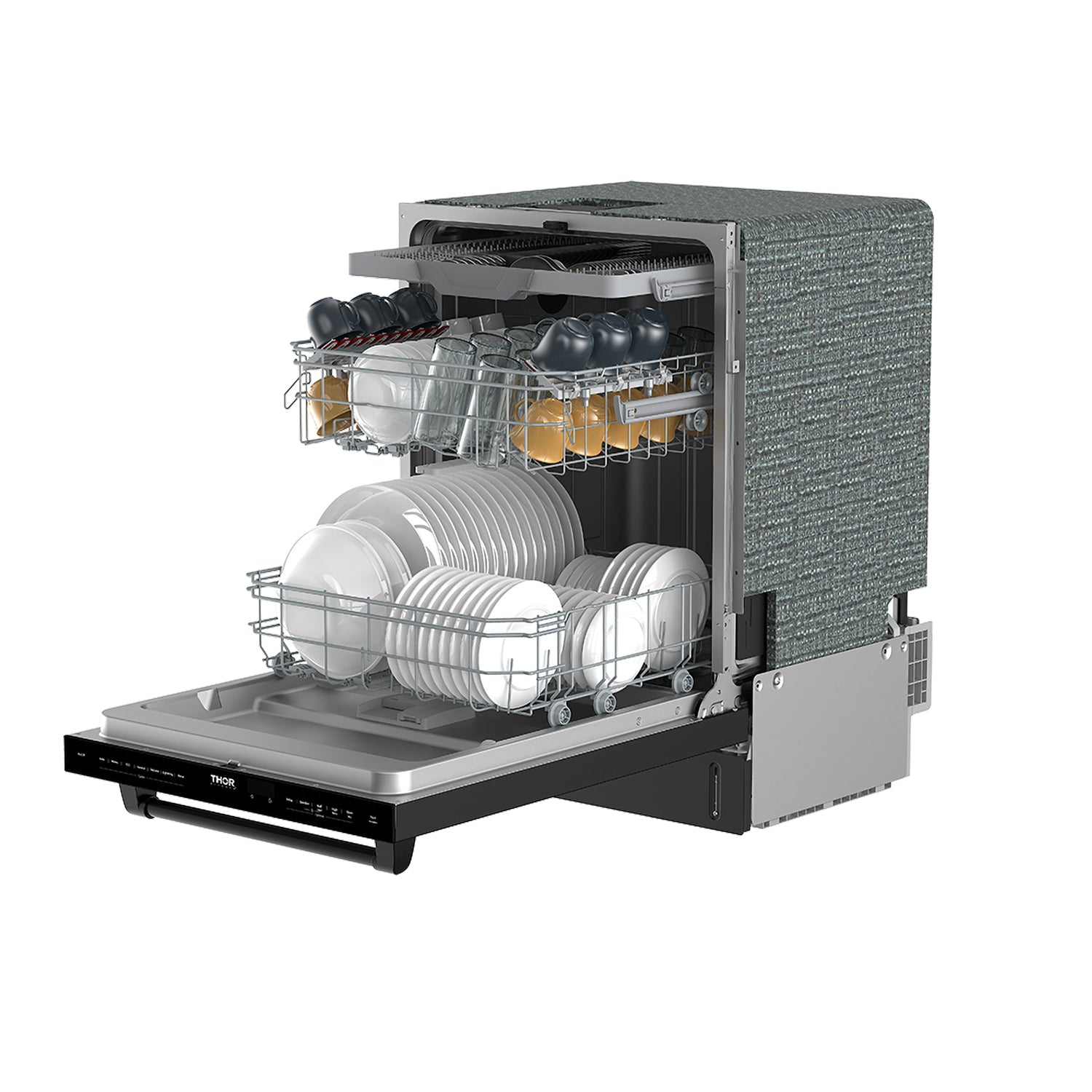

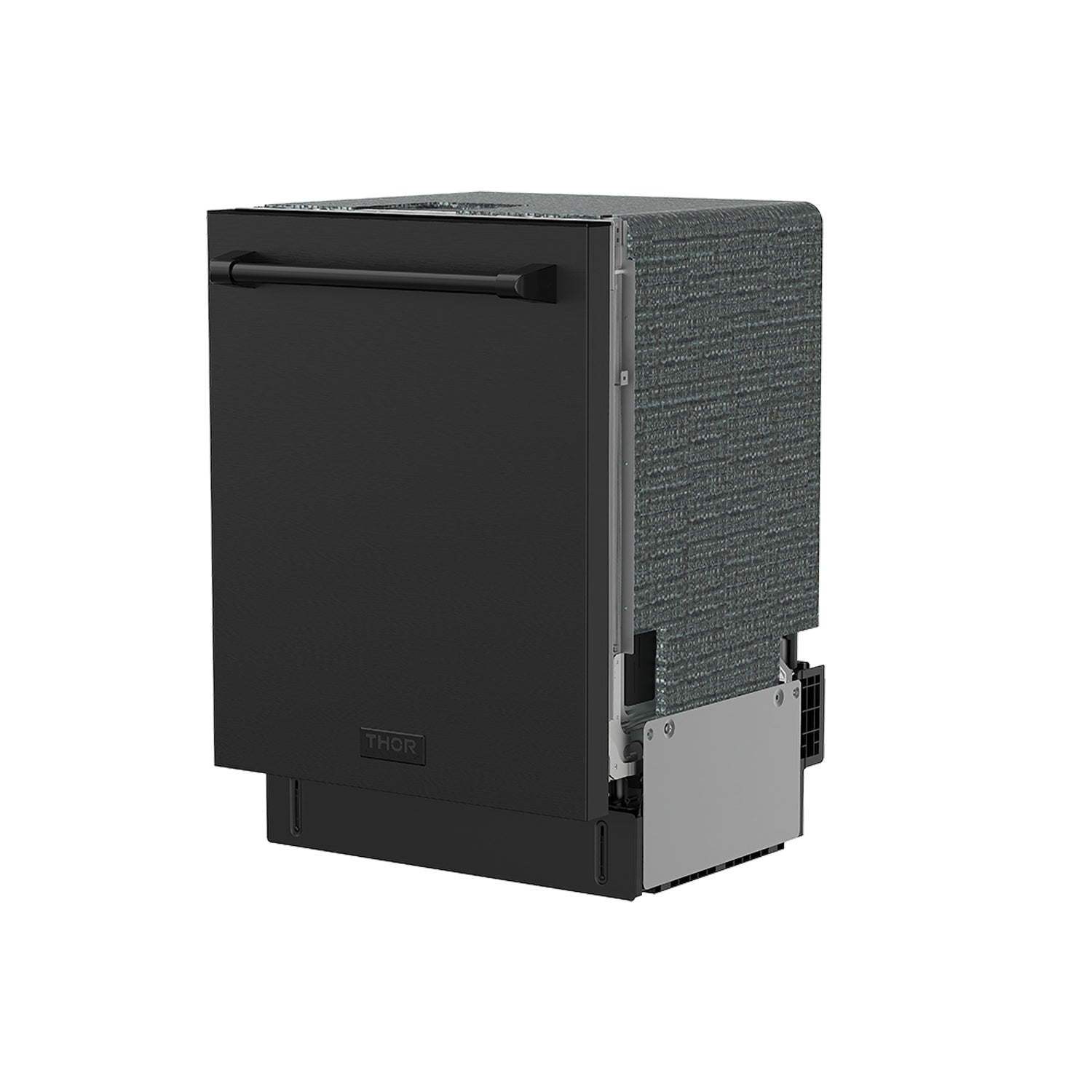

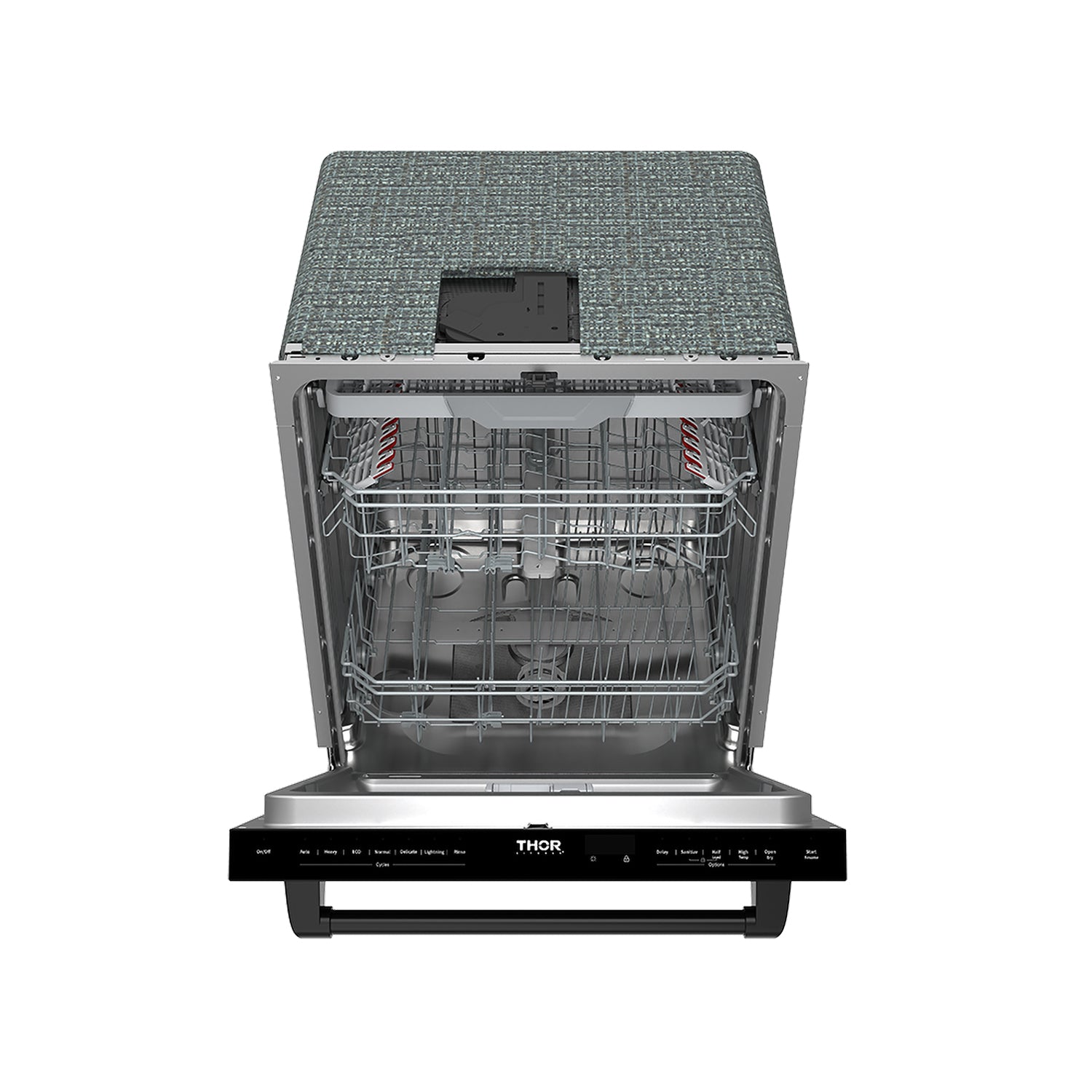

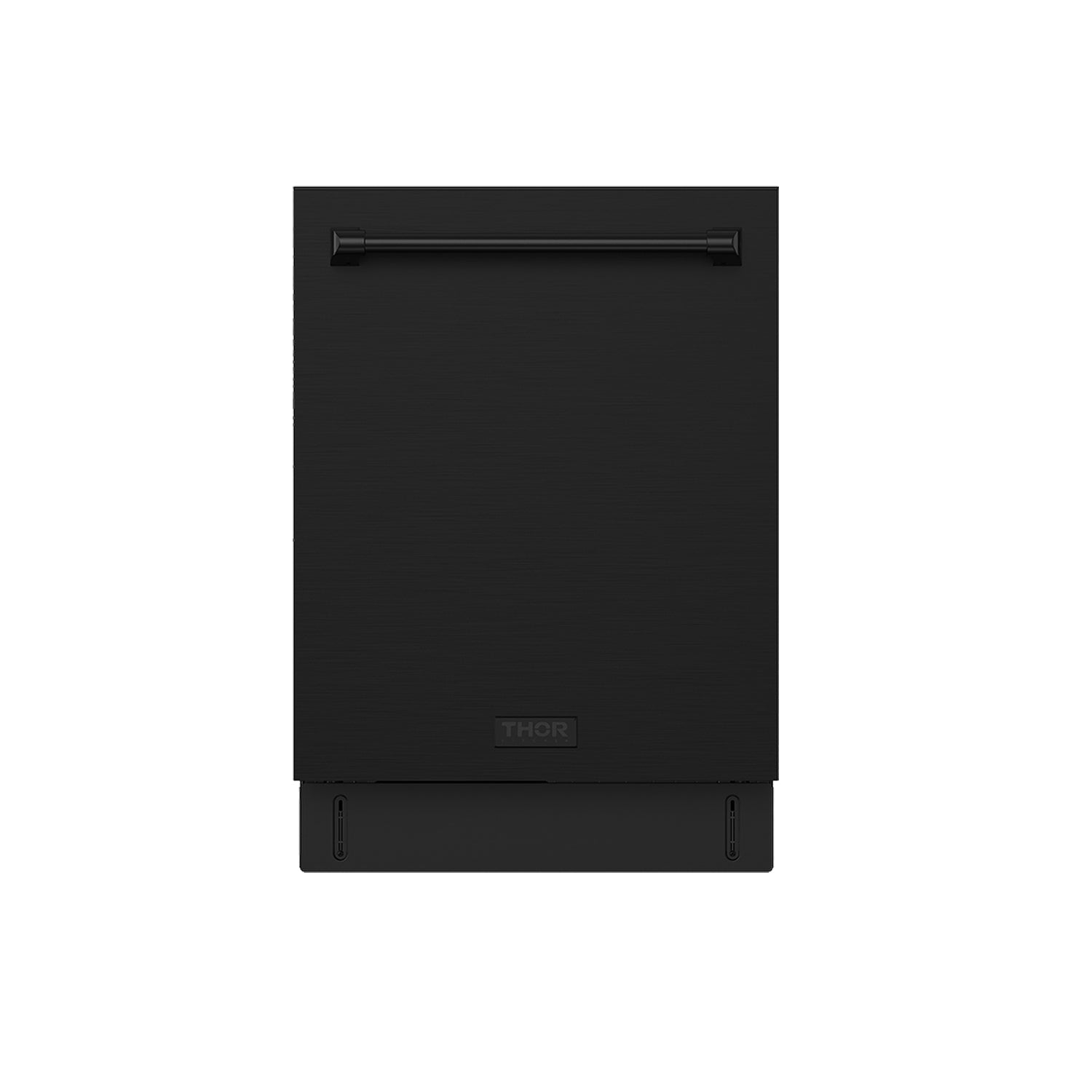

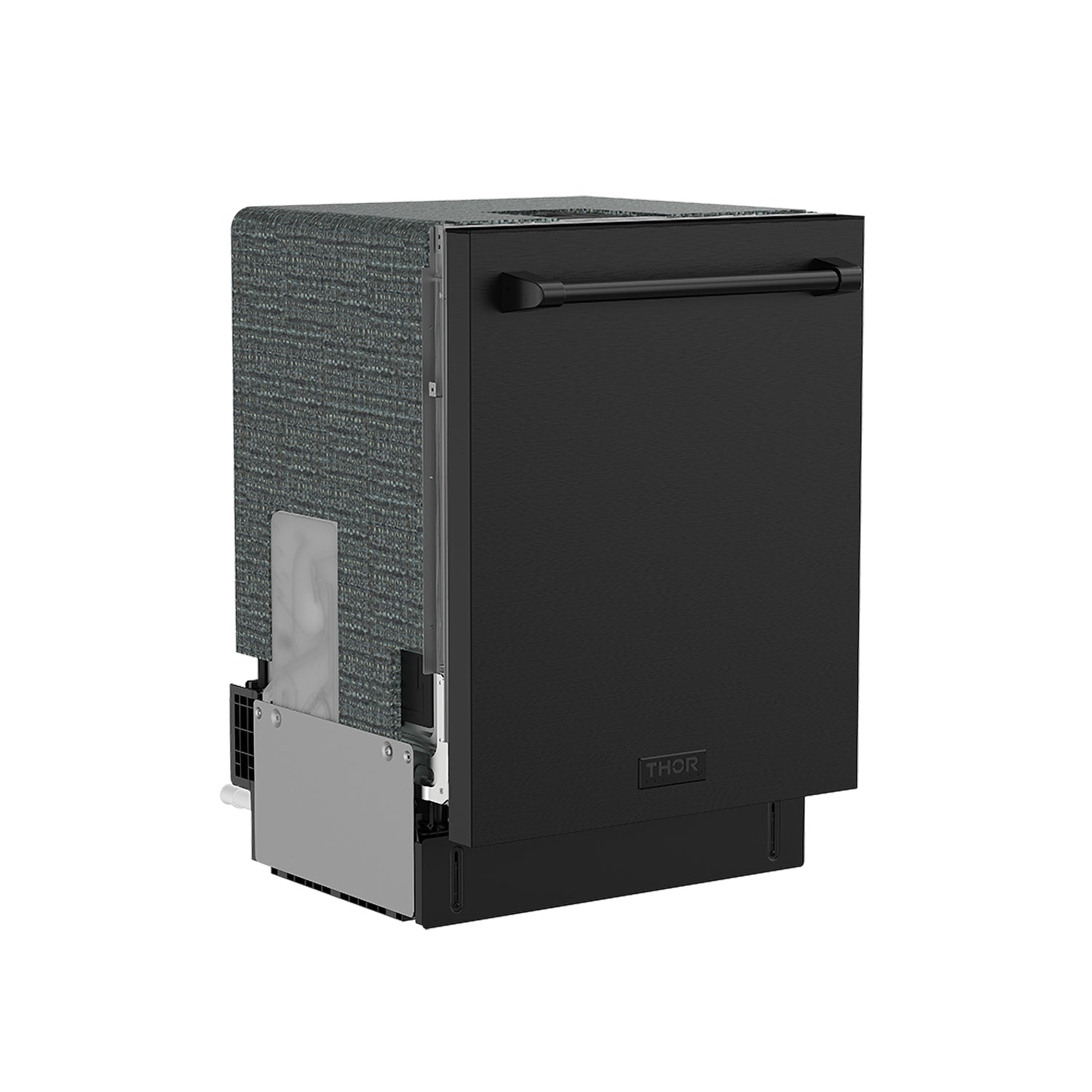

24 Inch Top Control Built-in Dishwasher in Black

TDW24C7B

24 Inch Top Control Built-in Dishwasher in Black

Name: 24 Inch Top Control Built-in Dishwasher in Black
Brand: thorkitchen.com
SKU: TDW24C7B
Price: 1099.00 USD
Availability: InStock

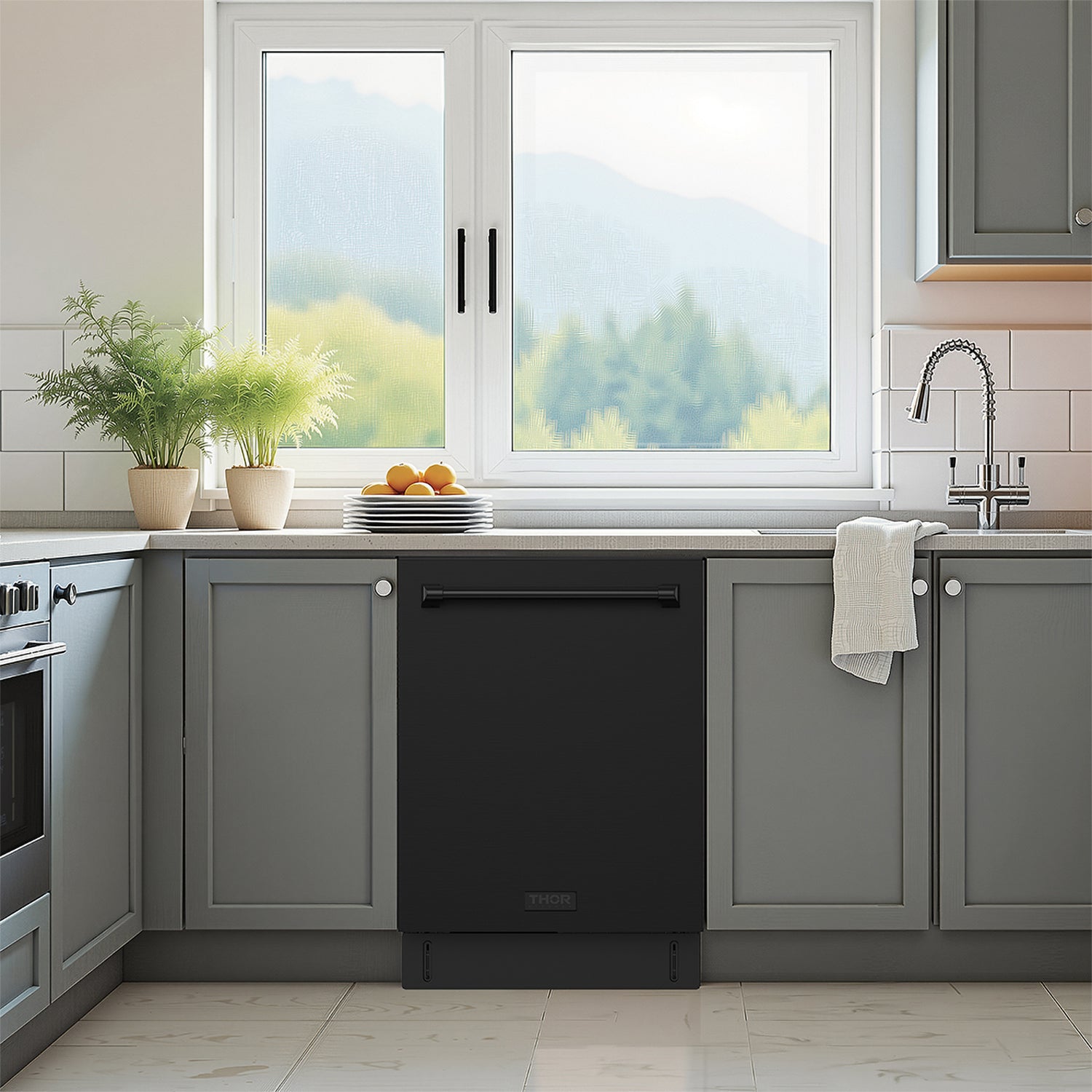

THOR Kitchen’s 24 Inch Built-In Dishwasher in Black brings versatility and precision to your daily cleanup. Open Dry technology promotes even drying, while the height-adjustable upper basket and wine glass bracket make room for everything from oversized cookware to delicate stemware. With 7 wash cycles, 5 options and a quiet 47 dBA operation, it adapts to every load without disrupting your space. A sleek status indicator light keeps you informed at a glance for a smooth, streamlined experience. #IgniteYourCulinaryCreativity

$ 1,099.00

Base Color:

Black White

Find Nearby

24 Inch Top Control Built-in Dishwasher in Black

$ 1,099.00

Available Online

24 Inch Top Control Built-in Dishwasher in Black

This product is currently unavailable for online purchase.

All-in-One Kitchen Solution

Whether you're grilling, stir-frying, or chopping, the Griddle, Wok Ring and Bamboo Cutting Board for Gas Rangetop is the perfect combo. Hurry, only at thorkitchen.com

Technical Details
Watts	1200W
Amperage	15A (Dedicated)
Volts	120V
Frequency	60Hz
Total Annual Energy Consumption	240 kWh per year
Water Consumption	3.2 gal
Noise Level	47 dBA
Water Feed Pressure	20–120 psi
Inlet Water Temperature	Recommended 120°F (49°C)
Outlet Hose Length (in.)	59"

General Properties
Load Capacity (Place Settings)	15
Number of Wash Cycles	7
Spray Arms	3 (Lower, Upper, and Top)
Tub Material	Stainless Steel
Number of Racks	3
Adjustable Rack	Yes
Control Type	Touch Screen
Water Softener	No
Child Lock	Yes
Status Indicator	Yes (Red)
Tub Light	No
Wine Glass Bracket	Yes
Third Layer Cutlery Rack	Yes

Product Dimensions
Product Dimensions (WxDxH) [in.]	23-7/8" x 22-5/8" x 33-7/8"
Product Depth with Handles [in.]	25-1/8"
Cutout Dimensions (WxDxH) [in.]	23-7/8" - 24" x 22-7/8" - 23-5/8" x 34" - 35-1/2"
Package Dimensions (WxDxH) [in.]	28-3/4" x 28-3/4" x 35-1/16"
Net Weight [lbs.]	80.5 lbs
Gross Weight [lbs.]	97.8 lbs

Accessories Included
Moisture Barrier
Drain Hose
4 Mounting Hole Cover (2 Already Installed)

Accessories Not Included (Required)
Water Supply Hose
Power Cord

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

Technical

Technical Details
Watts	1200W
Amperage	15A (Dedicated)
Volts	120V
Frequency	60Hz
Total Annual Energy Consumption	240 kWh per year
Water Consumption	3.2 gal
Noise Level	47 dBA
Water Feed Pressure	20–120 psi
Inlet Water Temperature	Recommended 120°F (49°C)
Outlet Hose Length (in.)	59"

General Properties
Load Capacity (Place Settings)	15
Number of Wash Cycles	7
Spray Arms	3 (Lower, Upper, and Top)
Tub Material	Stainless Steel
Number of Racks	3
Adjustable Rack	Yes
Control Type	Touch Screen
Water Softener	No
Child Lock	Yes
Status Indicator	Yes (Red)
Tub Light	No
Wine Glass Bracket	Yes
Third Layer Cutlery Rack	Yes

Dimensions and Weight

Product Dimensions
Product Dimensions (WxDxH) [in.]	23-7/8" x 22-5/8" x 33-7/8"
Product Depth with Handles [in.]	25-1/8"
Cutout Dimensions (WxDxH) [in.]	23-7/8" - 24" x 22-7/8" - 23-5/8" x 34" - 35-1/2"
Package Dimensions (WxDxH) [in.]	28-3/4" x 28-3/4" x 35-1/16"
Net Weight [lbs.]	80.5 lbs
Gross Weight [lbs.]	97.8 lbs

Accessories Included
Moisture Barrier
Drain Hose
4 Mounting Hole Cover (2 Already Installed)

Accessories Not Included (Required)
Water Supply Hose
Power Cord

Cutout

Spec and Manual

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

PRODUCT FEATURES

Enhances air circulation for effective and even drying, ensuring dishes are dry and free from residual moisture.

The upper basket can be adjusted to different heights, allowing you to create space for larger or taller items in the lower rack

Choose from 7 wash cycles and 5 options to tackle everything from delicate glassware to heavily soiled pots, delivering efficient, customized cleaning for any load.

Open Dry

Enhances air circulation for effective and even drying, ensuring dishes are dry and free from residual moisture.

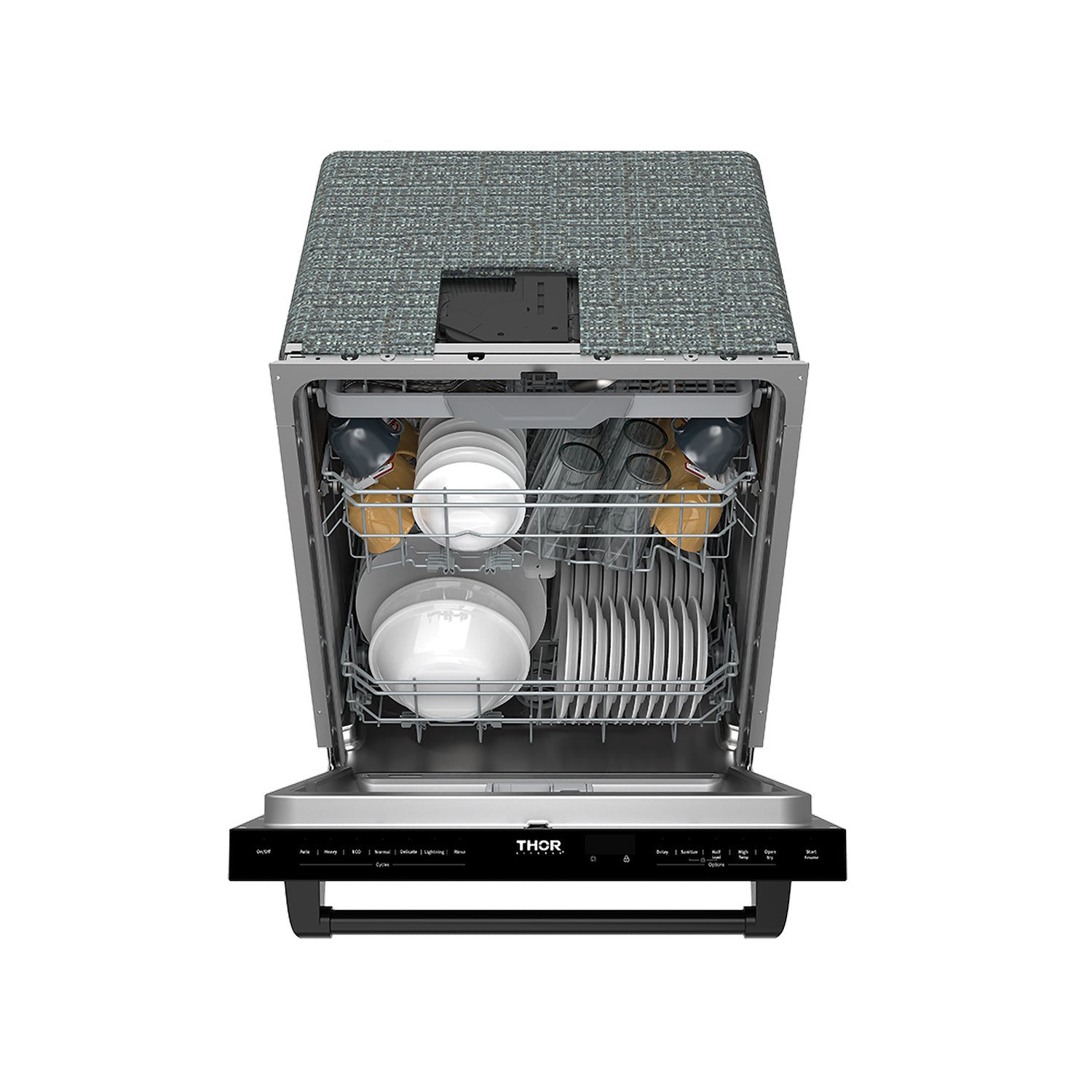

Height-Adjustable Upper Basket

The upper basket can be adjusted to different heights, allowing you to create space for larger or taller items in the lower rack
7 Wash Cycles with 5 Options

Choose from 7 wash cycles and 5 options to tackle everything from delicate glassware to heavily soiled pots, delivering efficient, customized cleaning for any load.
Quiet Operation at 47 dBA

So quiet you can run it anytime—perfect for open-concept kitchens, entertaining, or mealtime cleanups

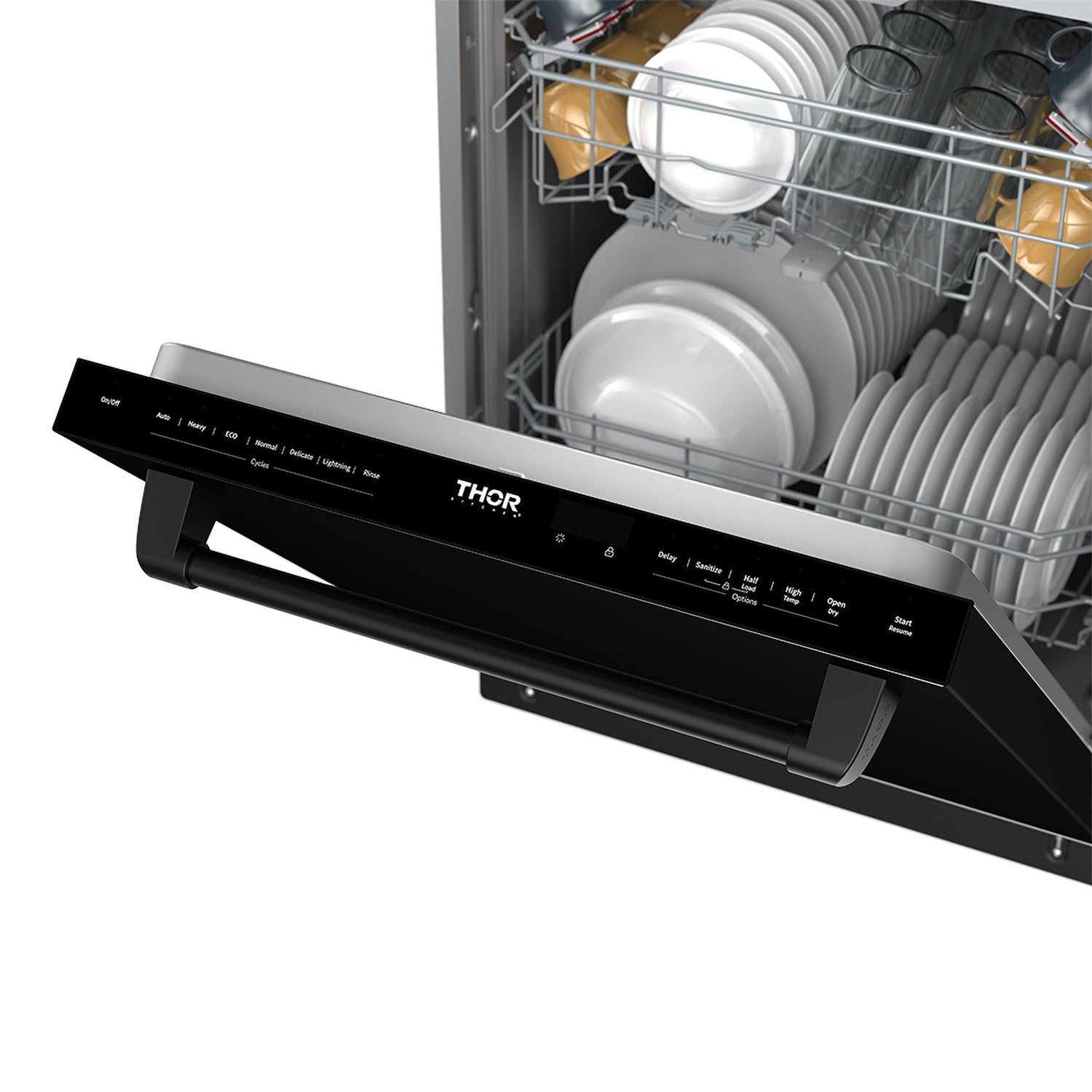

Status Indicator Light

Displays a clear visual indication of the dishwasher’s progress, allowing you to easily monitor the current wash cycle without needing to open the door.
Wine Glass Bracket

Designed to securely hold delicate glassware, ensuring wine glasses and other fragile items are spotless and intact after each wash.

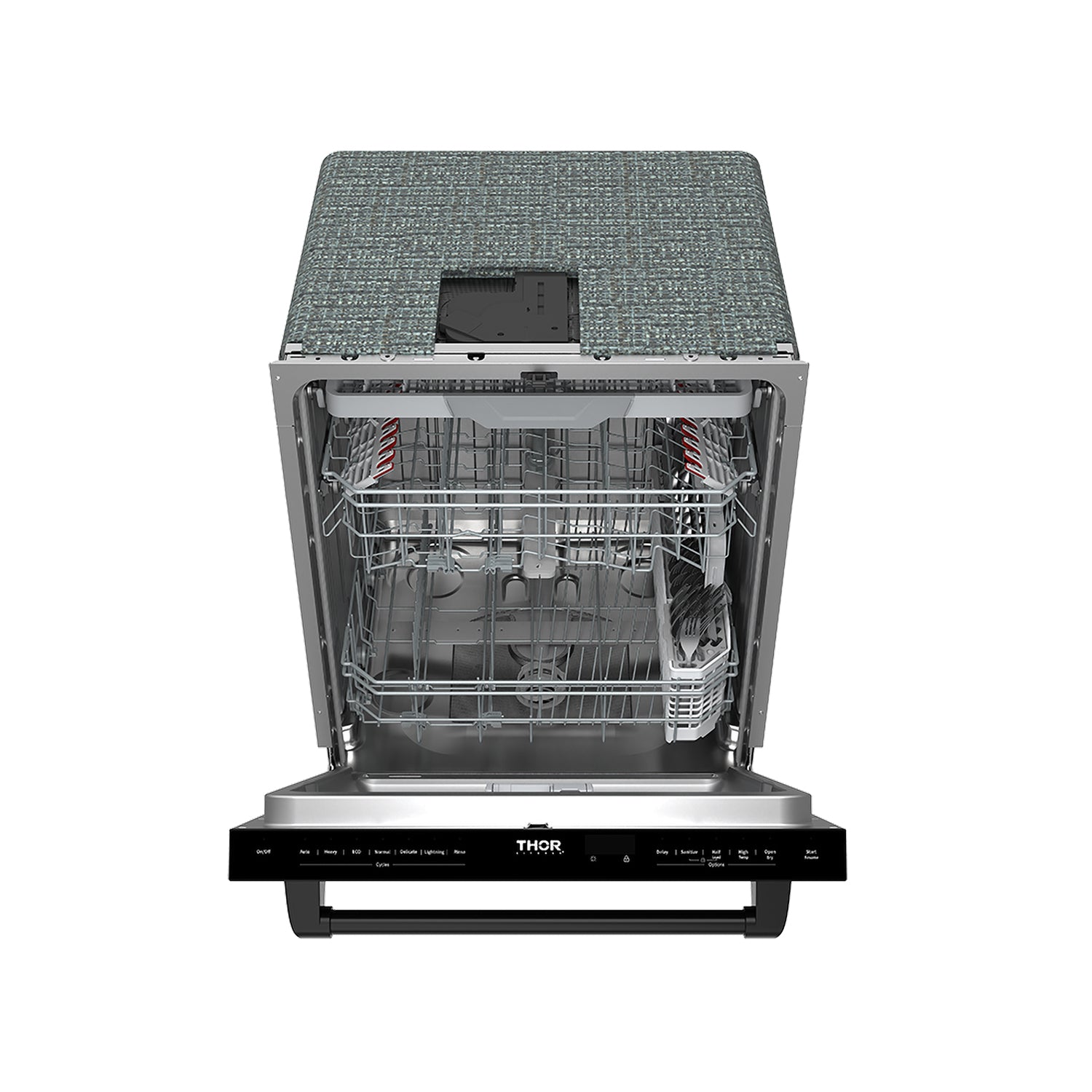

Third Layer Cutlery Rack

Maximize space and organization with a dedicated third rack for utensils, knives, and small items—keeping them secure and separate for a thorough, gentle clean.
